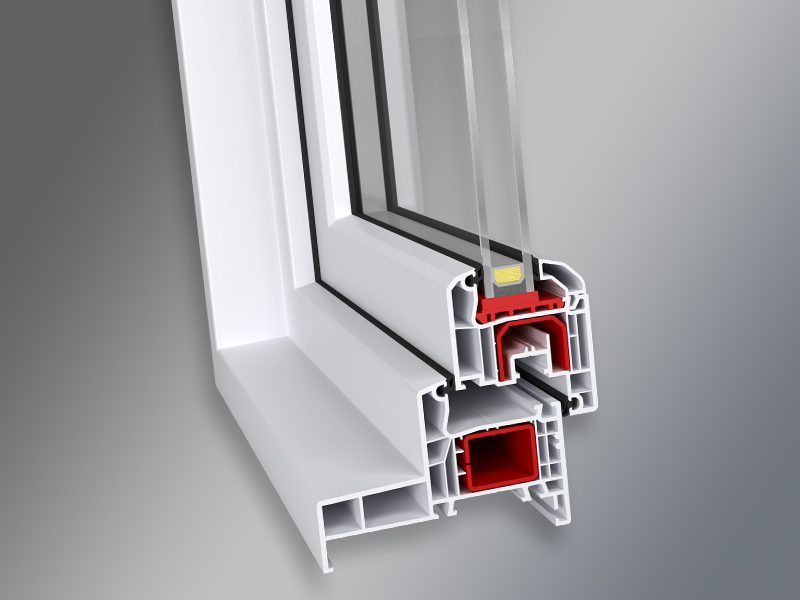

uPVC Window Monoblock

Description

Monoblock

Windows dedicated to the French market and suitable for buildings which are insulated from the inside. Monoblock frames are intended for the construction of windows that are installed in the insulation layer. They are available in several width variants, thanks to which they can be selected depending on the thickness of the insulation.

Monoblock – benefits

The wide choice of frames width (70-162 mm) allows for their proper selection, depending on the thickness of insulation
A special windowsill on the external side of the frame for masking the insulation along the entire perimeter of the window (eliminating the possibility of thermal bridges)
The internal frame overlapping ensures aesthetic installation from the inside of the room without the need for gypsum treatment
Equipped with two anti-burglary points per sash
Glazing in units up to 42 mm wide
The possibility to combine the frame with different types of sashes (Classic-line or Round-line)

Additional information

Color	AP 102, AP 103, AP 104, AP 105, AP 107, AP 108, AP 109, AP 11, AP 110, AP 111, AP 112, AP 113, AP 115, AP 116, AP 19, AP 20, AP 21, AP 22, AP 25, AP 47, AP 60, AP 61, AP 62, AP 65, AP 75, AP 79, AP 94, AP-01, AP-02, AP-05, AP-06, AP-106, AP-15, AP-23, AP-27, AP-28, AP-29, AP-30, AP-32, AP-34, AP-40, AP-41, AP-43, AP-44, AP-50, AP-52, AP-63, AP-70, AP-71, AP-72, AP-88, AP-95
Brand	Aluplast
Depth of the frame [mm]	70 – 162
Number of chambers	5
Number of gaskets	2
Opening direction	Inwards
U-value	0.86 -1.3
Profile thickness	Class B
Wind resistance	C4
Water resistance	5A
Acoustic insulation	34 – 45 db
Air permeability	Class 4

AP-70

AP 116

AP 25

AP-30

AP 104

AP-71

AP 47

AP-32

AP 105

AP-72

AP-01

AP 60

AP-34

AP 107

AP-88

AP-02

AP 61

AP-40

AP 108

AP-95

AP-05

AP 62

AP-41

AP 109

AP-106

AP-06

AP 65

AP-43

AP 110

AP 11

AP-15

AP 75

AP-44

AP 111

AP 19

AP-23

AP 79

AP-50

AP 112

AP 20

AP-27

AP 94

AP-52

AP 113

AP 21

AP-28

AP 102

AP-63

AP 115

AP 22

AP-29

AP 103
