Description

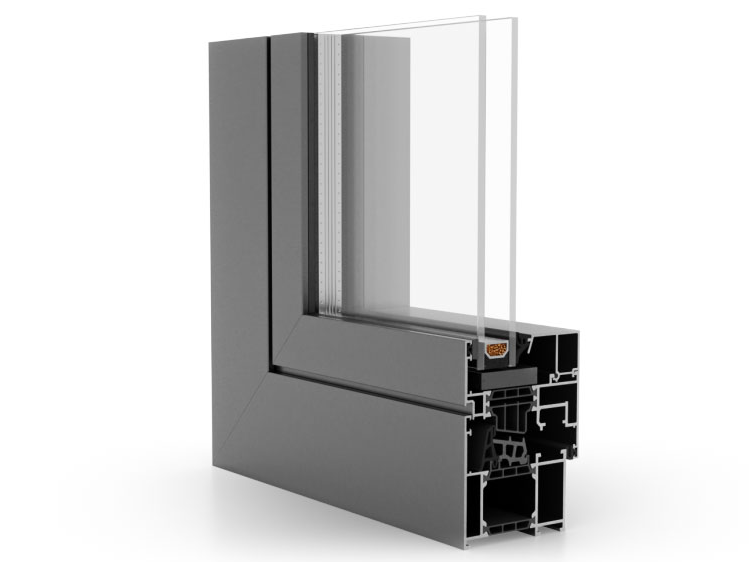

A window and door system with a two-component central gasket. It meets the increased requirements of thermal insulation and creates enormous design possibilities. It can be used to make structures such as: fixed, side-hung, tilt, tilt and turn, tilt and slide windows, as well as single and double-leaf external doors and display door solutions. It is durable, resistant and has excellent thermal and acoustic insulation properties.

MB-79N ST :

• a window system with a two-component central gasket
• construction depth 70 mm
• frame depth (door / window) 70 mm
• sash depth 79 mm (windows), 70 mm (doors)
• glazing with packages from 10.5 to 63 mm (windows), from 1.5 to 54 mm (fix / door)
• maximum dimensions of the window sash RU – H up to 2700 mm, L up to 1700 mm
• maximum dimensions of the door leaf – H up to 2800 mm, L up to 1400 mm
• brand-new shape thermal breaks made of an innovative material allow the use of a seal in the area of profile insulation, in both windows and doors
• excellent kinematics enabling the fabrication of narrow, operable windows and doors
