Description

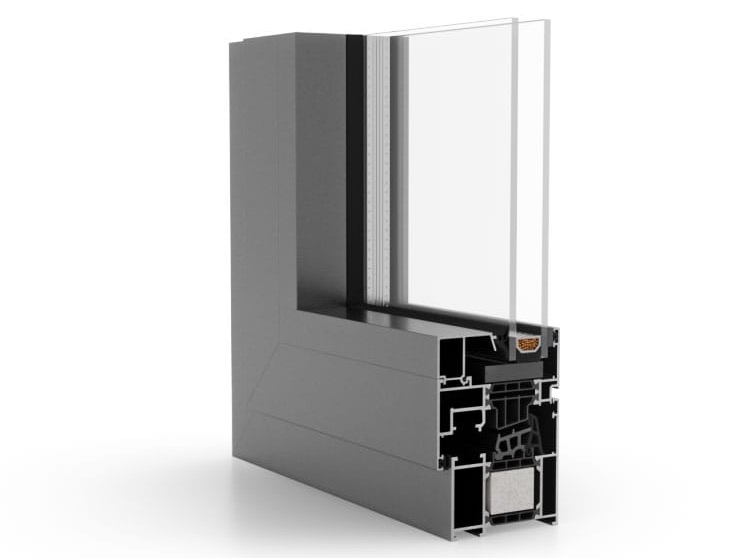

A window and door system variant with enhanced thermal insulation. Its profiles come equipped with insulating inserts and a two-component central seal. The system creates enormous design possibilities. It can be used to make structures such as: fixed, side-hung, tilt, tilt and turn, tilt and slide windows, as well as single and double-leaf external doors and display door solutions. It is durable, resistant and has excellent thermal and acoustic insulation properties.
MB-79N SI :
- a window system with with enhanced thermal insulation
- profiles equipped with insulating inserts and a two-component central seal
- construction depth 70 mm
- frame depth (door / window) 70 mm
- sash depth 79 mm (windows), 70 mm (doors)
- glazing with packages from 10.5 to 63 mm (windows), from 1.5 to 54 mm (fix / door)
- maximum dimensions of the window sash RU – H up to 2700 mm, L up to 1700 mm
- maximum dimensions of the door leaf – H up to 2800 mm, L up to 1400 mm
- brand-new shape thermal breaks made of an innovative material allow the use of a seal in the area of profile insulation, in both windows and doors
- excellent kinematics enabling the fabrication of narrow, operable windows and doors
