Aluminium Window MB-104 Passive SI

Aluminium Window MB-104 Passive SI

  • A Passive House Institute Darmstadt-certified window
  • Depth of the frame: 95 mm
  • Large range of glazing – up to 81 mm

SKU: Aluprof2090 Categories: ,
Brand:

Description

A thermal break-equipped window and door system that is characterised by thermal insulation performance and very good sound insulation, water and air tightness parameters. It is dedicated to energy-efficient and passive construction.

MB-104 Passive SI:

  • A window certified by Passive House Institute Darmstadt
  • Standard-exceeding tightness and insulation performance
  • Window frame installation depth: 95 mm
  • Sash depth: 104 mm
  • Maximum sash dimensions: 1700 mm x 2900 mm
  • Maximum sash weight: 106 kg
  • Glazing thickness: 27 – 72 mm (frame)/ 34.5 – 81 mm (sash)

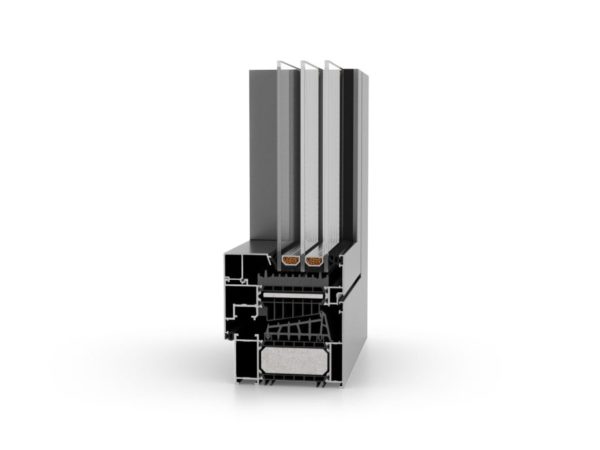

  • 3-chamber profile structure with a thermal break
  • Strong but a relatively lightweight aluminium construction perfect for the use in large, panoramic glazing
  • The MB-104 Passive-based window parameters exceed the current requirements of the strictest applicable regulations and standards

Additional information

Brand

Depth of the frame [mm]

Number of chambers

Number of gaskets

Opening direction

U-value

Wind resistance

Water resistance

Acoustic insulation

Air permeability
