A three-chamber system intended for the design of sliding systems and lift and slide systems. It is recommended for energy-efficient constructions. The structure can consist of six elements and move on two or three tracks. It can be used as an exit to the terrace, balcony or garden.

Visoglide Plus – benefits

• Two types of window frame: 2-rails/ 3-rails
• The depth of the frame: 118 mm (with double running rail profiles) or 142 mm (with triple running rail profiles)
• Maximum sash dimensions: 1800 mm x 2600 mm
• Fittings – lift&slide system: up to 250 kg
• Sash depth: 51 mm
• Low aluminium threshold with a thermal barrier
• Glazing units up to 32 mm wide
• Thermally insulated system with thermal breaks made of a material with increased thermal insulation

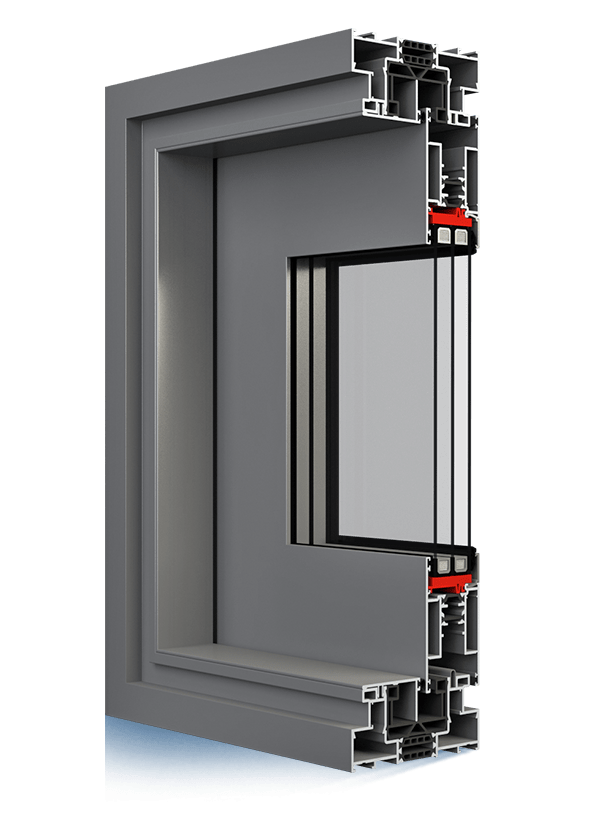

• 3-chamber profile design
• Extremely narrow labyrinth post (in sliding and lift-and-slide sashes) of 34 mm width
• Trolleys placed under the moving elements and preventing the structure from hanging up
• Wide range of sill profiles (with hidden drainage) and angular profiles available
