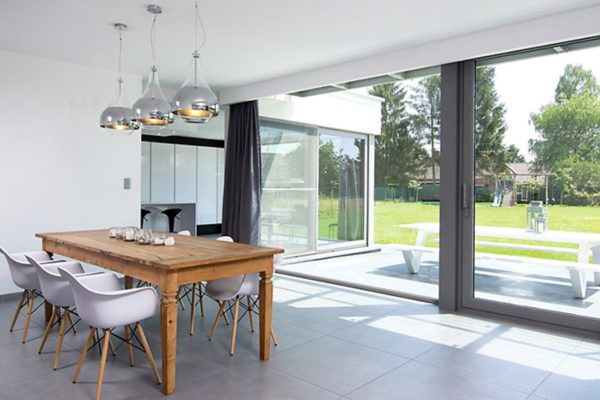

The well-insulated system for designing Lift&Slide doors that ensures perfect interior lighting. Thanks to its construction, it allows for the production of large, yet stable constructions. The system is adapted to the latest requirements in the field of thermal insulation, aesthetics and safety. Recommended both for installation in public facilities and residential buildings.

Ultraglide – benefits

• Two types of window frame: 2-rails/ 3-rails
• The depth of the frame: 153 mm (with double running rail profiles) or 239 mm (with triple running rail profiles)
• Maximum sash dimensions: 3200 mm x 3300 mm
• Fittings – lift&slide system: up to 400 kg (single sash)
• Sash depth: 67 mm
• Burglary resistance: RC2
• Low aluminium threshold with a thermal barrier
• Glazing units up to 52 mm wide
• The profiles allow the assembly of both single and double-chamber packages
• Structure construction – door frame: 3, 5 and 7 chamber system (according to the latest thermal insulation requirements)
• The use of a thermal break made of aluminium and glass fibre addition
• Thermal breaks of 22 or 28 mm width
• Available system options – version UG, UG i, UG i+
