Description

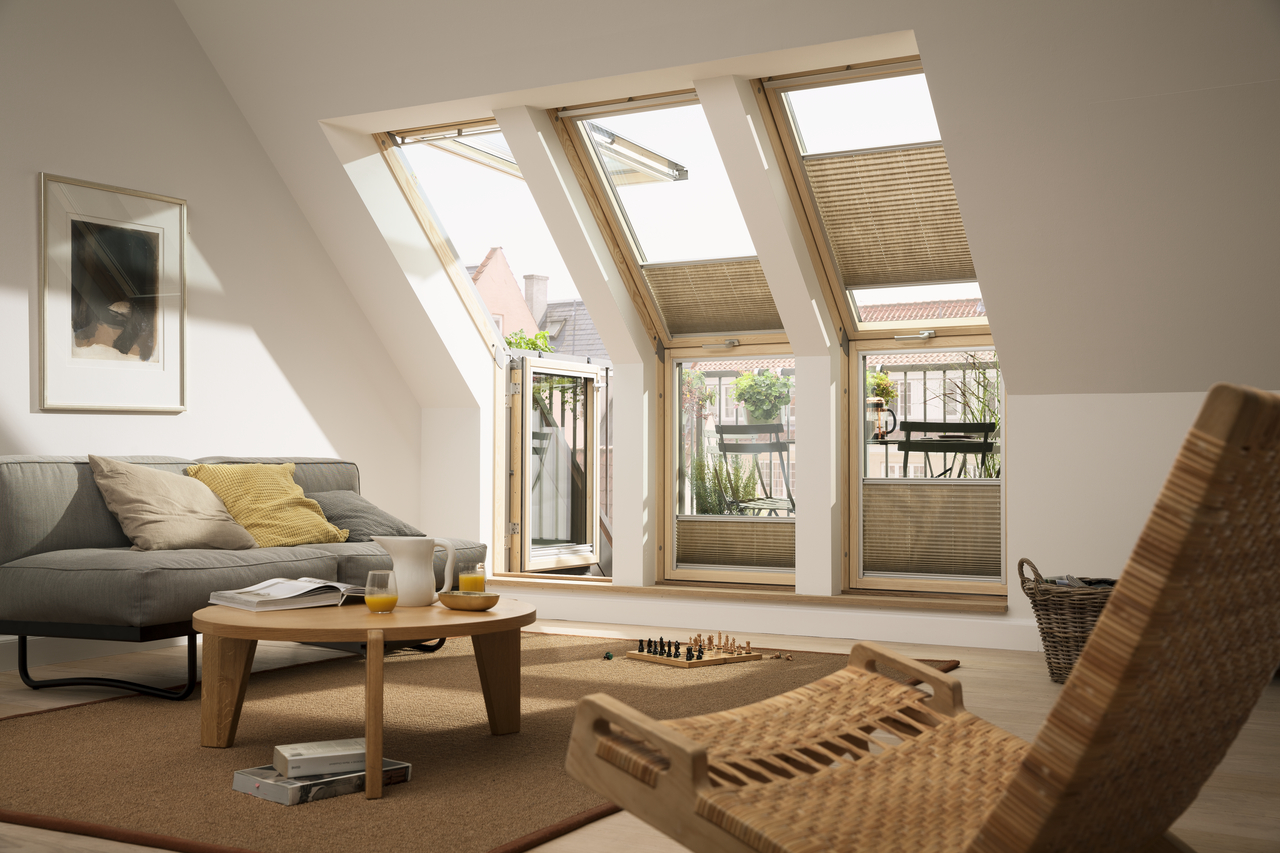

A system of window and door elements, creating an exit to the balcony. Made of glued laminated, impregnated and lacquered pine wood. This unusual solution in a unique style ensures direct contact with the outside world. You can open the upper part of the GEL balcony window in the same way as another roof window with a lower opening to ventilate the room. After opening both parts, you will go out onto the roof terrace and get the most out of the loft space. The windows are marked by VELUX with the Premium class.
GEL 3065 – benefits:
- Terrace windows for access to the terrace, built into the existing roof structure
- This solution allows the construction of a balcony and full use of the attic area without the need for additional construction work
- Upper section: top-hung window with bottom handle for convenient operation. The window can remain open in any position up to an angle of 45°
- Lower sections, choose between:
– VEA side-hung, outward opening sash, opens to the left
– VEB side-hung, outward opening sash, opens to the right
– VEC fixed sash (non opening)
- VEA/VEB with handle on the side sash. The handle can be fitted with a lock
- Comfortable interior with light and unlimited view
- It is perfectly suited as an emergency exit (solution accepted in Germany by the Fire Service)
- Super-energy-saving glass pane 65 as standard
- Continuous, contamination-free ventilation with the window closed through the ventilation flap and air filter
- Convenient and safe maintenance of the outer pane thanks to low pivot point, full pivot range and a bolt to block the position of the window when washing
- Maintenance-free exterior covers
- Standard equipped with elements for easy installation of accessories
Available window sizes (cm):
- M08 78×136
Recommended dimensions for installation:
Upper window edge at a height of about 200 cm. Side by side elements mounted at 10 cm intervals or using a twin beam.
For reasons of structural stability, only one element can be opened in a combi set.
Important note:
It’s necessary to choose a sealing flashing for window, which is an essential element when you install the window. The flashing is selected depending on the roofing (e.g. roof tile type, thatch tile, steel tile, shingle, roofing felt etc.) and roof pitch. Flashing is used to seal the window and drain water and snow beyond its outline.
The two lower parts with door functions cannot be mounted next to each other. The hardware of the VEA/VEB components must always be embedded in the original rafters of the roof structure!
