Description

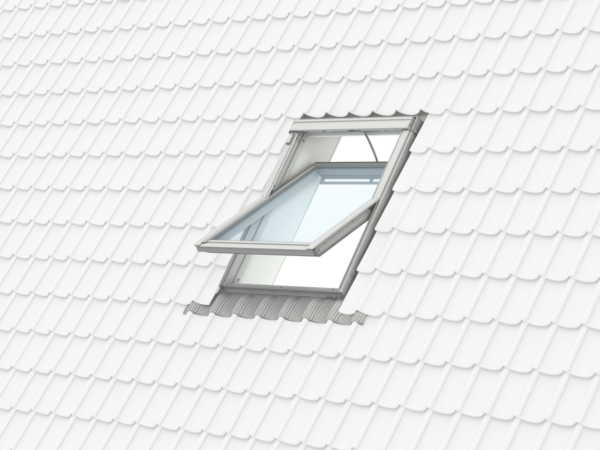

A fully automatic smoke ventilation window characterised by ease of use and simple installation. The system opens up the roof window as soon as smoke is detected or a break glass point is activated. It allows for a safe and fast escape in the event of a fire, as smoke is dispersed quickly from corridors and stairways. VELUX smoke ventilation system means that you can easily comply with building regulations and European standards on smoke ventilation with the added benefit of increased daylighting into a building. The windows are marked by VELUX as Premium Class.
GGL 306640D – benefits:
- Smoke ventilation system complete with a smoke sensor, break glass point and control unit
- Tested and certified to comply with building regulations on smoke ventilation
- Opens to 85° within 60 seconds.
- Comfort ventilation possible at the touch of a button
- Complete control system for single or groups of windows
- Suitable for roof pitches 15 – 90 degrees
Available window sizes (cm):
- MK04 78×98
- MK06 78×118
- MK08 78×140
- PK06 94×118
- PK08 94×140
- SK06 114×118
- SK08 114×140
- UK04 134×98
- UK08 134×140
The smoke extraction system consists of:
The basic element of the system is the VELUX smoke ventilation window. The windows are available with standard NCS S 7500-N aluminium cladding and safety glass -70.
On special request, the windows are available with copper or zinc titanium cladding, and energy-saving two-chamber glass -66.
Important note:
It’s necessary to choose a sealing flashing for window, which is an essential element when you install the window. The flashing is selected depending on the roofing (e.g. roof tile type, thatch tile, steel tile, shingle, roofing felt etc.) and roof pitch. Flashing is used to seal the window and drain water and snow beyond its outline.
In case of installing the windows without standard flashing, it’s necessary to order the ZWC flashing.
