Description

The MB-60E EI system is dedicated to the production of external and internal fire doors. The system allows you to choose single or double-sash doors. MB-60E EI-based constructions are classified EI15 or EI30 to PN-EN 13501-2+A1:2010. The system is classified as non-fire spreading (NRO). Thanks to design capabilities and compatibility with other MB systems, it is a very attractive proposition in that class of products, providing an excellent fire protection.

MB-60E EI – benefits:

• The depth of the frame: 60 mm
• Maximum sash dimensions: 1000 mm x 2800 mm
• Maximum sash weight: 120 kg
• Maximum sash dimensions: 1.4 m x 2.475 m
• Maximum double sash door width: 2.58 m
• Glazing units up to 41 mm wide

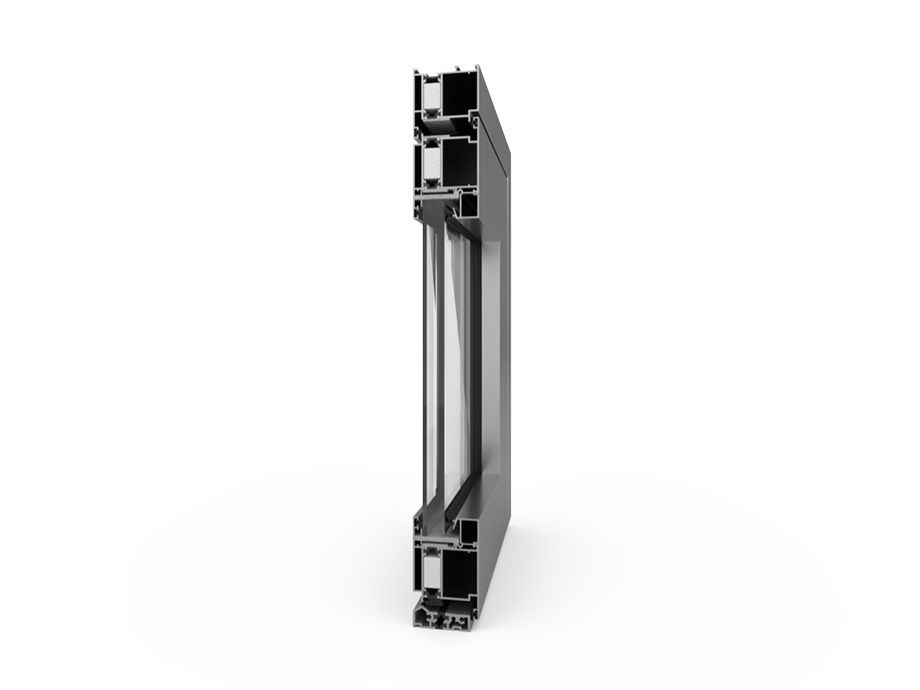

• Aluminium profiles with thermal break (system MB-60E) with the structural depth of profiles of 60 mm
• Fire insulation components mounted in internal chambers of the profiles
• Constructions equipped with intumescent tapes stopping the fire from spreading
• The possibility of application of fire-resisting glass classified EI15 and EI30
• Special steel elements for securing the glass before falling out during the fire
